FEATURES & APPLICATIONS
Features
- High motor performance and sturdy three-speed gearing for optimum drilling speed
- 360-degree adjustable side handle with integrated dust and water management functions
- Real-time feedback display with digital spirit level, gear selector, power control function, advanced usage statistics and easy-to-understand service messages
- Bluetooth® connectivity to WMS 100 water management system
- Real-time usage statistics analysis via the Hilti Connect app
Applications
- Rig-based wet drilling in concrete for pipe penetrations, cable trays and ducts and for the installation of railings and barriers
- Hand-guided wet drilling for setting large-diameter anchors and reinforcing bars
- Hand-guided dry drilling in masonry for pipe penetrations in plumbing, heating and air conditioning installations and for chimney and stove installation
PRODUCT INFORMATION

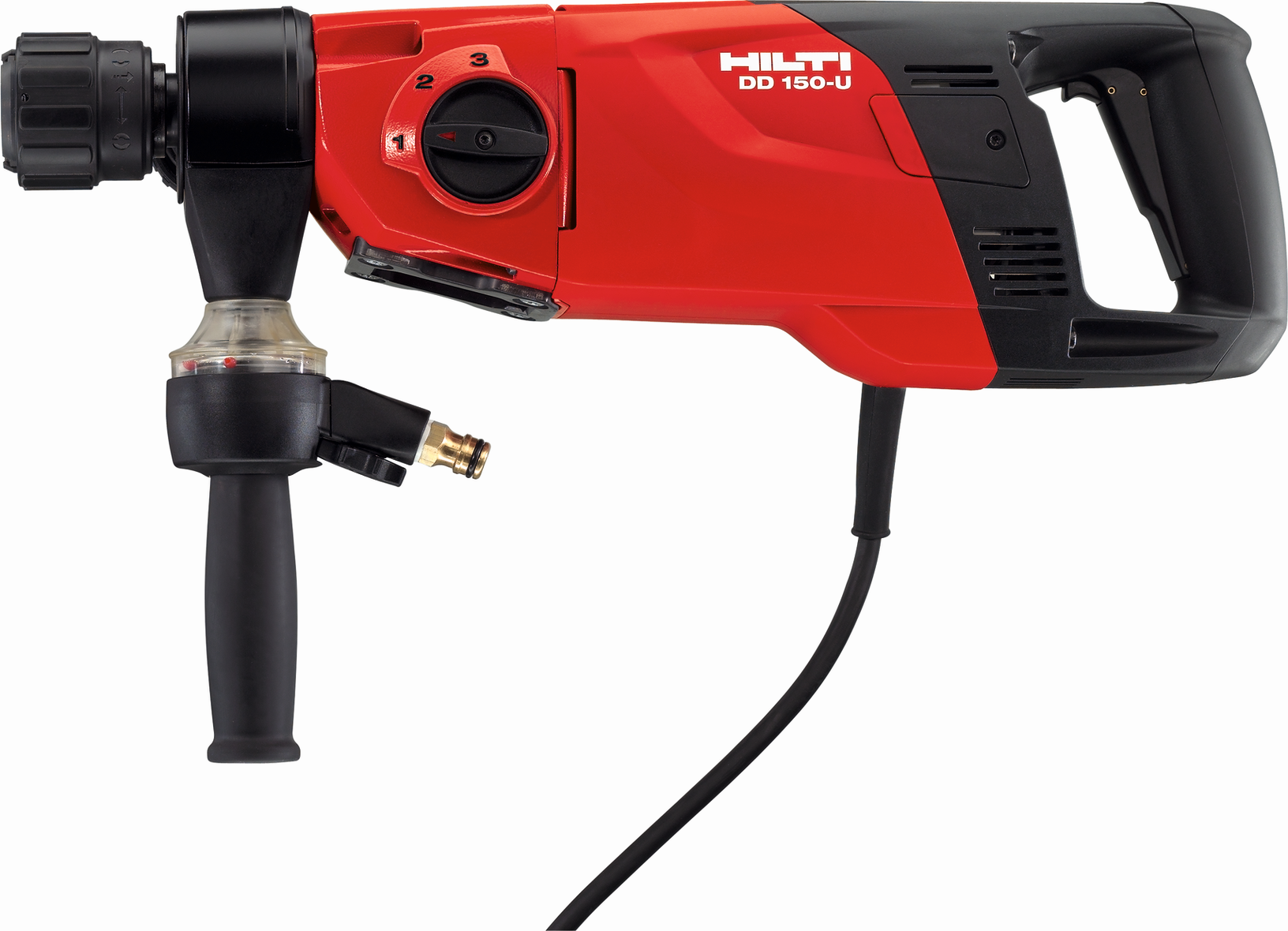

Diamond coring tool DD 150-U 230V
- Item Number: 2204548
- # of items in Package: 1
Diamond coring tool DD 150-U 230V
- Item Number: 2204549
- # of items in Package: 1
TECHNICAL DATA
- Diameter range: 8 - 162 mm
- Base material: Concrete, Reinfored concrete, Asphalt, Masonry
- Operation mode: Hand-held or rig-mounted drilling system
- Number of gears: 3
- No load RPM: 1: 840 rpm; 2: 1640 rpm; 3: 3070 rpm
- Weight according to EPTA Procedure 01/2003: 8.35 kg
- Weight of complete system: 22 kg
- Dimensions (LxWxH): 516 x 129 x 159 mm
- A-weighted emission sound pressure level: 89 dB (A)
- Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD): 3.9 m/s²
- Corner accessibility: 53 mm
